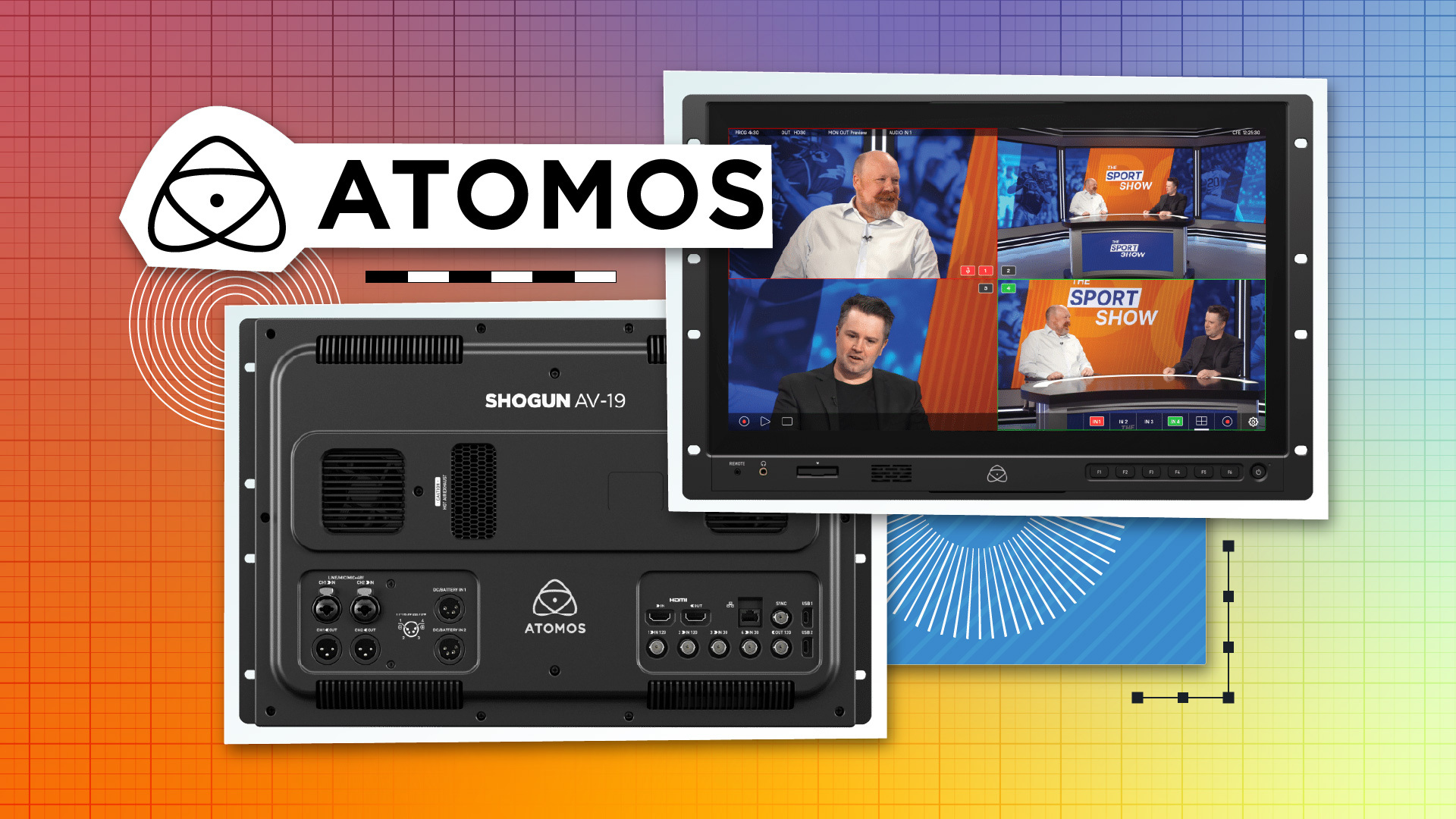

Atomos Shogun AV-19: A Rack-Mountable Monitor-Recorder-Switcher for Live Production

Atomos has announced the Shogun AV-19, a 19-inch 4K HDR monitor-recorder-switcher designed for professional live production, broadcast, and video village environments. The device, unveiled at ISE Barcelona on February 3, 2026, combines multi-camera ISO recording, live switching, and reference monitoring in a 7RU rack-mountable form factor.

The Shogun AV-19 is available for preorder at $2,099 USD / €1,899 EUR (excluding taxes) and ships at the end of March 2026.

What It Does: Four ISOs Plus Program in One Box

The core value proposition is consolidating multiple pieces of gear into a single rack unit. The Shogun AV-19 can simultaneously record up to four isolated camera feeds plus a fifth program output, all while providing live switching capabilities and reference monitoring on a single 4K HDR display.

Key specifications:

• Display. 19-inch 4K HDR DCI-P3 panel in a 7RU rack-mount chassis

• Recording. Up to five simultaneous streams (four ISOs plus program); Apple ProRes, ProRes RAW, and Avid DNx codecs; up to 10-bit 4:2:2 quality at resolutions up to 8Kp60

• Storage. CFexpress cards or external USB-C drives

• Connectivity. 2x 12G-SDI input, 2x 3G-SDI input, 1x 12G-SDI output, 1x HDMI in/out; NDI HX3 send and receive over ethernet; two full-size XLR inputs with 48V phantom power

• Monitoring tools. EL Zone false color, focus peaking, waveform, Log-to-LUT viewing, frame guides, safe areas, anamorphic de-squeeze, HDR-to-Rec.709 conversion, quad-view monitoring

The inclusion of NDI HX3 support is notable for production environments already invested in IP video workflows, allowing the Shogun AV-19 to integrate with existing NDI infrastructure for both sending and receiving streams.

Practical Applications: Video Village and Live Events

The Shogun AV-19 targets two primary use cases: on-set video village environments and live event production.

For video village setups, the device serves as a centralized monitoring and recording station. Directors, DITs, and clients can view a reference-quality 4K HDR display while the unit handles ISO recording from multiple cameras. The DCI-P3 color space and HDR-to-Rec.709 conversion tools make it viable as a reference monitor, not just a switching interface.

For live production and broadcast, the quad-channel recording eliminates the need for separate external recorders for each camera feed. Recording in ProRes or DNx directly to CFexpress cards or USB-C drives means footage is ready for post-production without transcoding delays. The XLR inputs with phantom power also allow for embedding professional audio without additional hardware.

The 7RU form factor suggests Atomos is positioning this for permanent or semi-permanent installations rather than run-and-gun documentary work; think OB trucks, corporate AV racks, and dedicated video village carts.

Market Context: Consolidation vs. Modularity

The Shogun AV-19 represents a consolidation approach to live production gear. Rather than assembling separate monitors, recorders, and switchers, productions can deploy a single integrated unit.

This tradeoff has real implications. Integrated solutions reduce cable management, rack space, and potential failure points. But they also create single points of failure and limit upgrade flexibility. If you need a better monitor but are satisfied with the recording capabilities, you are stuck replacing the entire unit.

At the $2,099 price point, the Shogun AV-19 competes against the cost of assembling equivalent functionality from separate components. A comparable 4K HDR reference monitor alone can cost $1,500 or more; adding multi-channel recording and switching capabilities would typically push total system cost well above the Shogun AV-19's asking price.

More about Atomos’ products:

What This Means for Production Workflows

The Shogun AV-19 addresses a specific pain point in live production: the complexity of managing multiple devices for monitoring, recording, and switching. For productions that regularly shoot multi-camera events with tight turnaround times, the ability to record edit-ready ProRes or DNx ISOs directly during capture can eliminate hours of post-production prep.

The device is available for preorder now through Atomos, with shipments expected at the end of March 2026. More information is available at atomos.com.
